Overview
Transparent glass substrates used as front glass in PV panels experience performance losses primarily due to light reflections. In fact, these reflection losses can range from 8-9% on the front surface of the solar module, which is a major challenge. To address this, an Antireflective Coating is deposited on the glass surface. ARCI has developed a new Broad-band Antireflective Coating (BARC) Technology that offers high light transmittance (>95%) along with Omnidirectional property, excellent weather, mechanical, and thermal stability. This is achieved using both organic and aqueous solvent-based compositions. ARCI’s Broad-band AR coating Technology is very cost-effective, industrially scalable, and highly suitable for harsh environments, it has the potential to become a leading technology for manufacturing PV glass.
Key Features

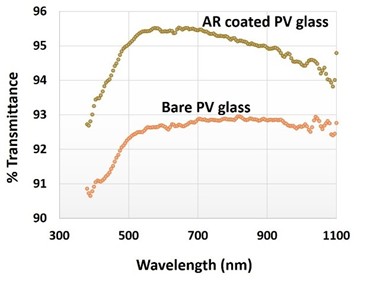

- > 95% transmittance on a single-side PV glass (2–2.5% T gain) in the 380–1100 nm wavelength region.
- High weather stability, withstanding high humidity-freeze, damp heat, and thermal cycling tests as per IEC 61215. It also passes the hydrolytic pressure test (ASTM C225).
- High thermal stability (<10000 C) and mechanical stability (ASTM D3363 and ASTM D3359).
- Long durability and a self-life period for both the coating and the coating sol.
- Cost-effective and easily scalable for industrial application.
Potential Applications
- Solar PV glasses
- Optical lenses
- Video display panels
- Architectural glasses
- Automobile window shields
Intellectual Property Development Index (IPDI)
Level
1
2
3
4
5
6
7
8
9
10
Description
Basic concepts and understanding of underlying scientific principles
Shortlisting possible applications
Research to prove technical feasibility for targeted application
Coupon level testing in simulated conditions
Check repeatability/consistency
Prototype testing in real-life conditions
Check repeatability/consistency
Reassessing feasibility (IP, competition technology, commercial)
Initiate technology transfer
Support in stabilizing production
Status
| Level | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Basic concepts and understanding of underlying scientific principles | Shortlisting possible applications | Research to prove technical feasibility for targeted application | Coupon level testing in simulated conditions | Check repeatability/consistency | Prototype testing in real-life conditions | Check repeatability/consistency | Reassessing feasibility (IP, competition technology, commercial) | Initiate technology transfer | Support in stabilizing production |
| Status |
|
For more details on Intellectual Property Development Indices, Click here
