Details

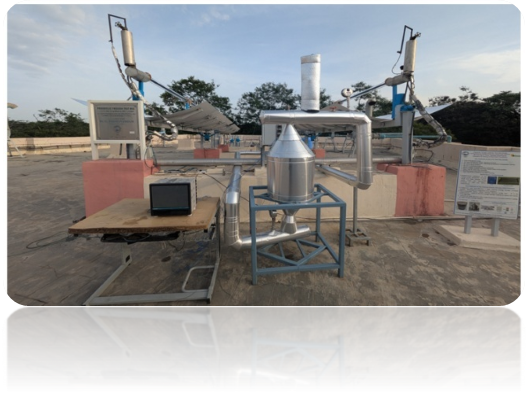

A Parabolic Trough Collector (PTC) integrated with a Thermal Energy Storage (TES) system is a highly effective concentrated solar thermal (CST) technology that addresses the intermittent nature of solar energy by allowing for continuous operation, even after sunset or during cloudy periods. The PTC utilizes a large, trough-shaped, mirrored surface to focus direct solar radiation onto a receiver tube positioned along the focal line. A heat transfer fluid (HTF) flows through the receiver tube, where it is heated to high temperatures up to 350 oC.

A machine on a roof AI-generated content may be incorrect.

Model and Make

 Indigenous Fabrication and Assembly using Indigenous Receiver Tubes and Thermal Energy Storage System

Specifications

Key Features:



  • First of its kind in India
  • 15 Liters of Thermic Fluid - Working Volume
  • 35 Liters of Thermic Fluid - Starting up inclusive of expansion volume
  • 51 m/s in stow position
  • 20 m/s in tracking position
  • Direct contact to enable instant response
  • Metal to Metal sealing reducing overall mass of the system
  • Open loop & close loop controls
  • Satellite based time synchronization
  • Light dependent resistors for finer tracking

  • Integration of 1 kWh Thermal Energy Storage System



Applications:



  • Solar Desalination
  • Industrial Process Heating
  • Steam Generation for Green Hydrogen Production
  • Validation of Thermic Fluids and Receiver Tubes
