Overview

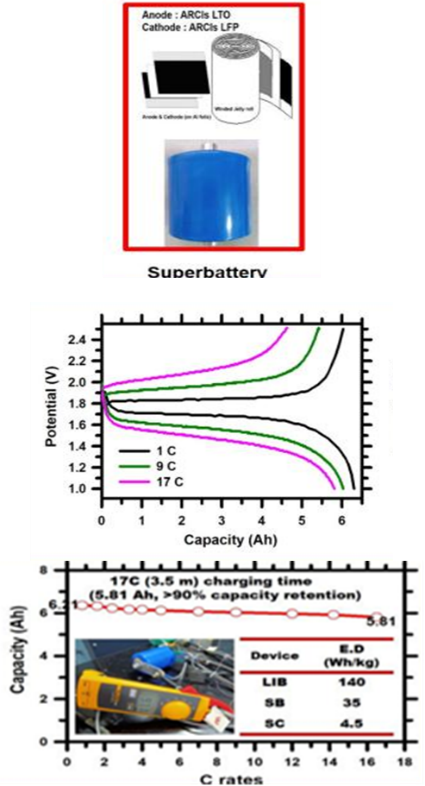

A tab-less 6080-sized Super Battery (60 mm diameter & 80 mm height) has been fabricated using safe, robust, chemically and thermally stable fast charging lithium titanate (LTO), and carbon coated LiFePO4 (C-LFP) as anode and cathode electrodes, respectively. The resulting device exhibited prominent charge-discharge rates up to 17C, and delivers a capacity of 5.8Ah. This is attributed to tab-less technology adopted for the fabrication of LFP-LTO super battery. This demonstrates a Li-ion battery with near-supercapacitor behaviour, and expects to address the key challenge of energy storage device having high energy and high power in a single device, indicating its promise for a wide range of applications including public transportation, regenerative breaking, power tools, and power source for drones respectively.

Key Features

  • A novel tab less 6080 design is conceived for fabricating the supper battery
  • The super battery has been demonstrated up to the 17C-rate
  • Suitable for power tools, regenerative braking and drone applications

Potential Applications

  • Automotive transport: Electric 2&4 wheelers, electric cars and drones etc.
  • Consumer electronics: Power tools, mobile applications and electronic gadgets.

Fabrication of Tab-less and High Power Cylindrical LFP-LTO cell for Fast Charging Lithium Ion Battery Application, S. Anandan, K. Nanaji, R. Vijay, Tata Narasinga Rao, Indian Patent Application No. 202341004527 dated
